LogBack

How it works ?

Let us begin by discussing the initialization steps that logback follows to try to configure itself:

  1. Logback tries to find a file called logback.groovy in the classpath.
  2. If no such file is found, logback tries to find a file called logback-test.xml in the classpath.
  3. If no such file is found, it checks for the file logback.xml in the classpath.
  4. If neither file is found, logback configures itself automatically using the BasicConfiguratorwhich will cause logging output to be directed to the console. This minimal configuration consists of aConsoleAppender attached to the root logger. The output is formatted using aPatternLayoutEncoder set to the pattern %d{HH:mm:ss.SSS} [%thread] %-5level %logger{36} – %msg%n. Moreover, by default the root logger is assigned the DEBUG level.

Loggers

Logger is the client code that executes the log events

Every single logger is attached to aLoggerContextwhich is responsible for manufacturing loggers as well as arranging them in a tree like hierarchy.

Level order:TRACE < DEBUG < INFO < WARN < ERROR.

Retrieving Loggers: LoggerFactory.getLogger

Loggers are named entities. Their names are case-sensitive and they follow the hierarchical naming rule (like java classes)

Appenders

In logback speak, an output destination is called an appender. Appenders must implement thech.qos.logback.core.Appender.

More than one appender can be attached to a logger.

Appenders are inherited additively from the logger hierarchy this is called Appender Adivitiy and can be disabled by setting AditivityFlag to false.

Layouts

The layout is responsible for formatting the logging request.

Example:

%-4relative [%thread] %-5level %logger{32} - %msg%n

will output something akin to:

176  [main] DEBUG manual.architecture.HelloWorld2 - Hello world.

Parametrized logging

logger.debug("Entry number: " + i + " is " + String.valueOf(entry[i]);

This is will incur the cost of evaluting and constructing the string message even if the debug logging is not enabled

A better alternative is:

Object entry = new SomeObject();
logger.debug("The entry is {}.", entry);

A peek under the hood

Let us now analyze the steps logback takes when the user invokes theinfo()method of a logger namedcom.wombat

  1. Get the filter chain decision: If it exists, theTurboFilterchain is invoked. Turbo filters can set a context-wide threshold, or filter out certain events based on information such asMarker,Level,Logger, message, or theThrowablethat are associated with each logging request. If the reply of the filter chain isFilterReply.DENY, then the logging request is dropped. If it isFilterReply.NEUTRAL, then we continue with the next step, i.e. step 2. In case the reply isFilterReply.ACCEPT, we skip the next and directly jump to step 3.

  2. Apply the basic selection rule

  3. Create aLoggingEventobject

  4. Invoking appenders

  5. Formatting the output

  6. Sending out theLoggingEvent

Basic Configuration

<configuration>

  <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
    <!-- encoders are assigned the type
         ch.qos.logback.classic.encoder.PatternLayoutEncoder by default -->
    <encoder>
      <pattern>%d{HH:mm:ss.SSS} [%thread] %-5level %logger{36} - %msg%n</pattern>
    </encoder>
  </appender>

  <root level="debug">
    <appender-ref ref="STDOUT" />
  </root>
</configuration>

you can instruct the configuration file to dump status data, even in the absence of errors. To achieve this, you need to set the debug attribute of the configuration element

Specifying the location of the default configuration file as a system property

java -Dlogback.configurationFile=/path/to/config.xml chapters.configuration.MyApp1

Configuration file syntax

Configuring loggers, or the<logger>element

Attributes: name, level, additivity, inherited (force it to inherit from ancestor)

The logger element my contain zero or more appender-ref

Configuring the root logger, or the<root>element

The root logger accept only the level attribute and my contain zero or more appender-ref

Note !

Let us note that the basic-selection rule depends on the effective level of the logger being invoked, not the level of the logger where appenders are attached. Logback will first determine whether a logging statement is enabled or not, and if enabled, it will invoke the appenders found in the logger hierarchy, regardless of their level. The following configuration file is a case in point

<configuration>

  <appender name="STDOUT"
   class="ch.qos.logback.core.ConsoleAppender">
   <encoder>
     <pattern>
        %d{HH:mm:ss.SSS} [%thread] %-5level %logger{36} - %msg%n
      </pattern>
    </encoder>
  </appender>

  <logger name="chapters.configuration" level="INFO" />

  <!-- turn OFF all logging (children can override) -->
  <root level="OFF">
    <appender-ref ref="STDOUT" />
  </root>

</configuration>

the level of the root logger has no apparent effect because the loggers in chapters.configuration.* are enabled for theINFOlevel

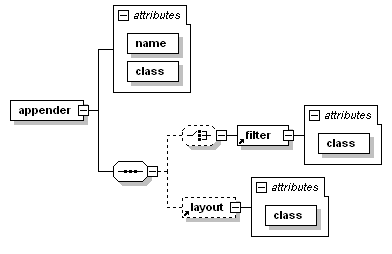

Configuring Appender

Example

<configuration>

  <appender name="FILE" class="ch.qos.logback.core.FileAppender">
    <file>myApp.log</file>

    <encoder>
      <pattern>%date %level [%thread] %logger{10} [%file:%line] %msg%n</pattern>
    </encoder>
  </appender>

  <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
    <encoder>
      <pattern>%msg%n</pattern>
    </encoder>
  </appender>

  <root level="debug">
    <appender-ref ref="FILE" />
    <appender-ref ref="STDOUT" />
  </root>
</configuration>

Be careful

By default, appenders are cumulative: a logger will log to the appenders attached to itself (if any) as well as all the appenders attached to its ancestors. Thus, attaching the same appender to multiple loggers will cause logging output to be duplicated.

How to disable ?

<configuration>

  <appender name="FILE" class="ch.qos.logback.core.FileAppender">
    <file>foo.log</file>
    <encoder>
      <pattern>%date %level [%thread] %logger{10} [%file : %line] %msg%n</pattern>
    </encoder>
  </appender>

  <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
    <encoder>
      <pattern>%msg%n</pattern>
    </encoder>
  </appender>

  <logger name="chapters.configuration.Foo" additivity="false">
    <appender-ref ref="FILE" />
  </logger>

  <root level="debug">
    <appender-ref ref="STDOUT" />
  </root>
</configuration>

Sniffing Appender

<configuration>

  <appender name="SIFT" class="ch.qos.logback.classic.sift.SiftingAppender">
    <!-- in the absence of the class attribute, it is assumed that the
         desired discriminator type is
         ch.qos.logback.classic.sift.MDCBasedDiscriminator -->
    <discriminator>
      <key>userid</key>
      <defaultValue>unknown</defaultValue>
    </discriminator>
    <sift>
      <appender name="FILE-${userid}" class="ch.qos.logback.core.FileAppender">
        <file>${userid}.log</file>
        <append>false</append>
        <layout class="ch.qos.logback.classic.PatternLayout">
          <pattern>%d [%thread] %level %mdc %logger{35} - %msg%n</pattern>
        </layout>
      </appender>
    </sift>
  </appender>

  <root level="DEBUG">
    <appender-ref ref="SIFT" />
  </root>
</configuration>

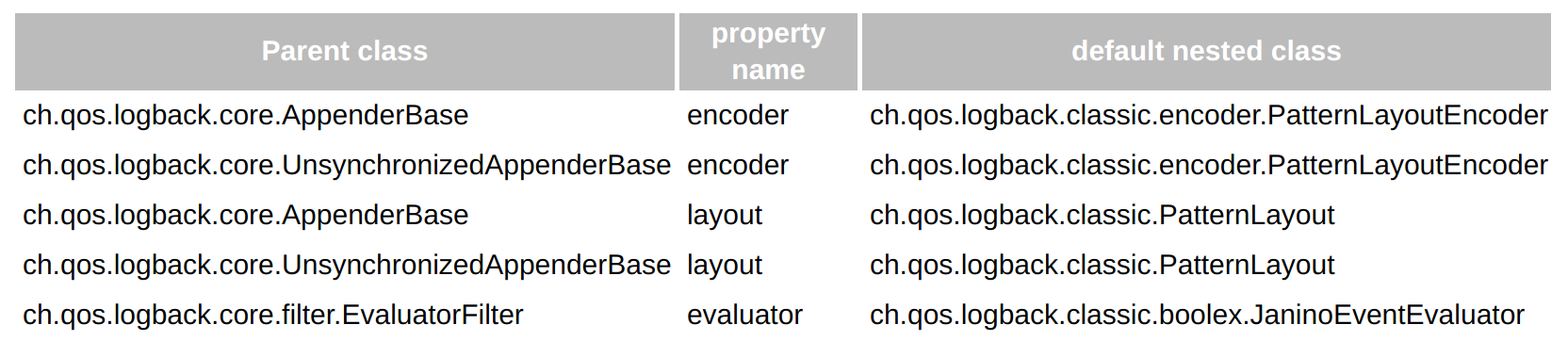

Default Mapping Classes

Mapped Diagnostic Context

To use MDC just call the MDC.put method and refer to the variable with %key in the pattern of layouts or ${key} in the file name pattern of Appenders using SiftingAppender

Conditions

<configuration debug="true">

  <if condition='property("HOSTNAME").contains("torino")'>
    <then>
      <appender name="CON" class="ch.qos.logback.core.ConsoleAppender">
        <encoder>
          <pattern>%d %-5level %logger{35} - %msg %n</pattern>
        </encoder>
      </appender>
      <root>
        <appender-ref ref="CON" />
      </root>
    </then>
  </if>

  <appender name="FILE" class="ch.qos.logback.core.FileAppender">
    <file>${randomOutputDir}/conditional.log</file>
    <encoder>
      <pattern>%d %-5level %logger{35} - %msg %n</pattern>
   </encoder>
  </appender>

  <root level="ERROR">
     <appender-ref ref="FILE" />
  </root>
</configuration>

Size and time based rolling policy

<configuration>
  <appender name="ROLLING" class="ch.qos.logback.core.rolling.RollingFileAppender">
    <file>mylog.txt</file>
    <rollingPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedRollingPolicy">
      <!-- rollover daily -->
      <fileNamePattern>mylog-%d{yyyy-MM-dd}.%i.txt</fileNamePattern>
       <!-- each file should be at most 100MB, keep 60 days worth of history, but at most 20GB -->
       <maxFileSize>100MB</maxFileSize>
       <!-- if maxHistory is not set: 'maxHistory' is not set, ignoring 'totalSizeCap' option with value [10 KB] -->
       <maxHistory>60</maxHistory>
       <totalSizeCap>20GB</totalSizeCap>
    </rollingPolicy>
    <encoder>
      <pattern>%msg%n</pattern>
    </encoder>
  </appender>


  <root level="DEBUG">
    <appender-ref ref="ROLLING" />
  </root>

</configuration>

Note

totalSizeCap is ignored if maxHistory is not set

Compression

To enable compression just name your file *.gz or *.zip and logback will do that for you

Example

file property set to /wombat/foo.txt: During November 23rd, 2009, logging output will go to the file /wombat/foo.txt. At midnight that file will be compressed and renamed as /wombat/foo.2009-11-23.gz. A new /wombat/foo.txt file will be created where logging output will go for the rest of November 24rd. At midnight November 24th, /wombat/foo.txt will be compressed and renamed as /wombat/foo.2009-11-24.gz and so on.

Note

File compresion is not support in prudent mode
